Conventional Water Leak Detection System

Safeguard your organization with a reliable and proven water leak detection system.

Briotronix offers an effective environment monitoring solutions for problems related to water leak in server, hub rooms and office spaces.

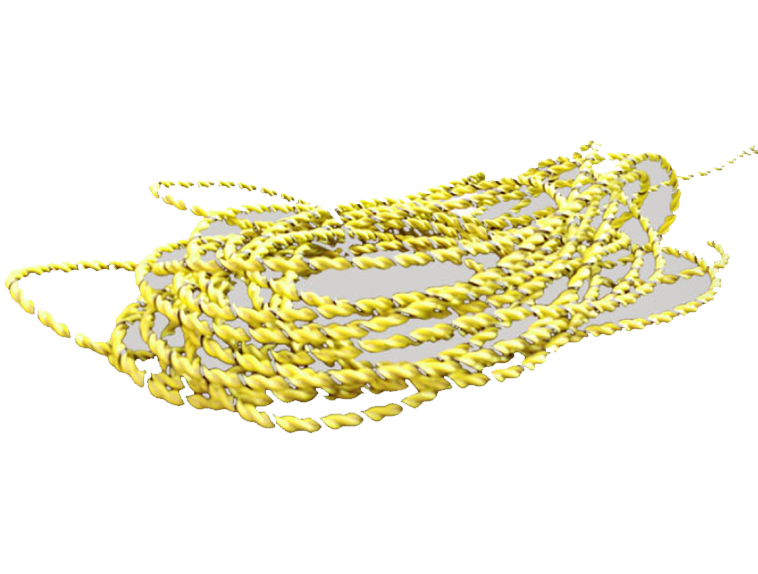

The compact device with its intelligent sensor cables monitor, detect and communicate the presence of water via local audio and visual alarms to the administrators.

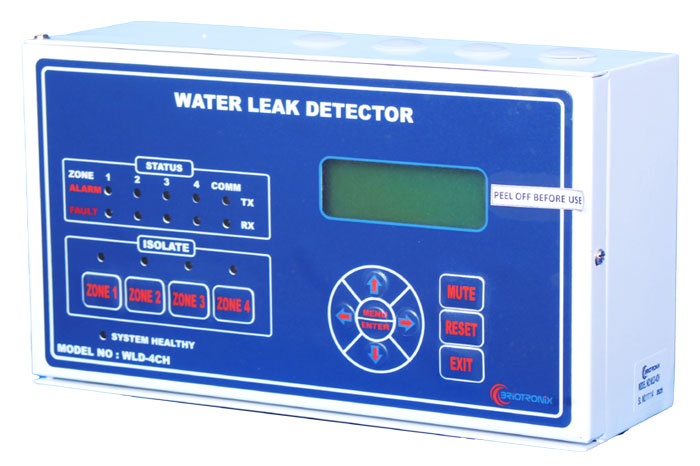

All basic device functionality is available from the LCD screen — configure, monitor, locate, and acknowledge leaks from the front panel.

Salient Features:

• The panel equipped with LCD Display can monitor 4 Zones. There is an alternate model which can accommodate 8 Zone. Zone names can be configured
• The panel is equipped with soft membrane keypad for navigation.
• Input to water leak cable is an isolated Ac supply which ensures the cable will not be subject to oxidation and erosion over time avoiding the degradations problems associated with DC system.
• Access the device remotely through BMS via MODBUS protocol.
• 4 X 20 LCD display for zone configuration, status of leaks in different zones along with LED display status for all zone.
• In the event of any abnormal condition or malfunction, it activates an alarm that has to be acknowledges physically to reset the same.
