Addressable Water Leak Detection System:

General Description:

This water leak detection panel acts as a master in the system. The interface modules which act as a slave, communicate with the master using Rs-485. The Master therein uses Modbus to communicate with the PC-side software of the client. The sensor cables are typically used to detect the water leak in critical rooms, to monitor leakage and indicate it on the Slave. The Slave will thereby extend the command to the Master and give an alarm. The Interface Modules are locally placed in the rooms, and shall be connected to the Master Panel through standard Cable. The panel activates common sounder.

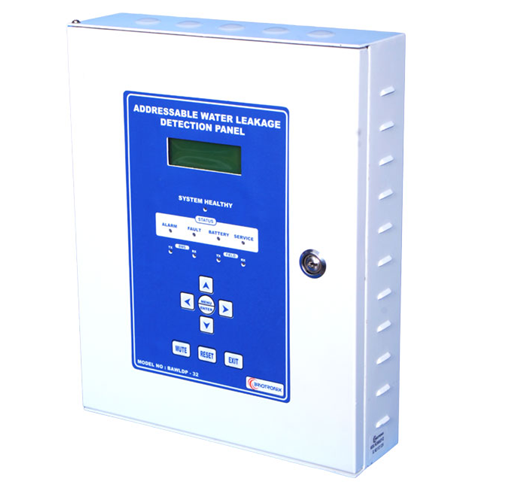

Addressable Water Leak Detection Master Panel
Industrial Emergency Lights (EXLITE – Industrial Series)

Features :

  • Monitor up to 32 Modules
  • Not only detects leak, also exact location of leak can be determined.
  • Triggers individual Relay output for Alarm and fault and activates common Fire & hooter relays.
  • Can access the panel remotely via MODBUS RTU protocol through any BMS software
  • Location mapping names can be configured via keypad
  • Log an extensive variety of events and alarms

Technical Specifications :

Addressable Water Leak Detection System
Power 100-240VAC mA max @ 250
Included 230V AC 5A Power Cord 2 meters
Inputs Module Compatible with AWLDM-OI Slave modules
Connection 2 or 4 core 1.5 sq.mm shielded twisted cable
Maximum Length 800 m from Master panel to last slave module
Response minimum 250msec / module. (8 sec for 32 modules)
Accuracy +/- 1.0 m accuracy - minimum (+/- 3% of cable length maximum)
Outputs LED Indications
System healthy Green LED
Alarm Red LED
Fault Red LED
Service Red LED
Relays Common Alarm, Fault & fire relay, Programmable relays
Communication Ports Port 01 ElA485 Optically Isolated. Use 1.5 Sq.mm shielded braid cable
Port 02 9600 baud Default No parity bits stop bit, Optically Isolated
Port 03 50000 bps ; For firmware update
Protocols EIA-485 (Port -1) Modbus protocol between Slave monitor modules
EIA-485 (Port -2) MODBUS RTU between Master panel & BMS gateway
Alarm Notification Audible Alarm Inbuilt buzzer DBA m (3.3ft) 80 @ 1 ; External hooter ( not included)
Visible Alarm Alarm indicated on LCD screen and throu BMS after integration
Logging Capabilities Login Security Event Log Last events 100
Tack tile Keypad No password required to view controller status and data . Administrator password limits access to Log events clear .
Front Panel Interface Display 4 x 20 character LCD Dis
Keypad Membrane keypad
Operating Environment Temperature 0 to 50 Deg C ( Deg to Deg  F) 32 122
Humidity 5% to 95% RH non condensing
Altitude 15,000ft(4,572m) max.
Storage Environment 20 (-4158 Deg to 70 Deg C Deg Deg F)
Dimensions 250 mm(W) x350mm(H) X10 mm(D)
Weight 5.0Kgs
Mounting Type Type 1 wall mount enclosure

General Description:

Addressable water leak Detection module AWLDM-01 is a embedded based intelligent system. The modules are addressable and can be connected as daisy chain. The module can be powered using an separate Power supply provided in the enclosure. 2X1.5mm Twisted Shield cable is recommended between Master Panel to all modules in daisy chain topology.

The Interface Modules are locally placed in the rooms, and shall be connected to the Master Panel through standard RS485 Cable. The panel activates common sounder. Testing procedure involves the cable to be in contact with water at least 2 inches to give correct reading and to test the relay operation. The Panel sounds the Alarms, and notifies the BMS system.

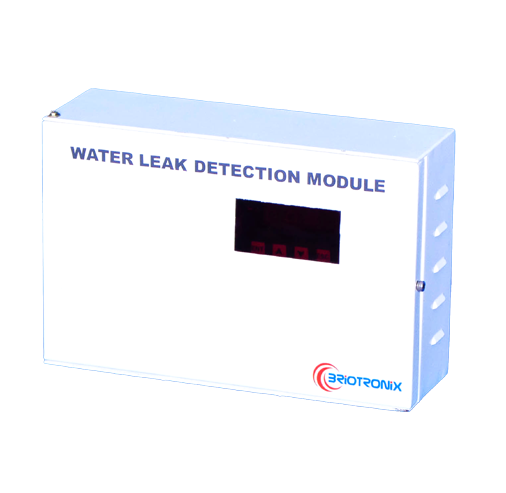

Addressable Water Leak Detection Field Module
Industrial Emergency Lights (EXLITE – Industrial Series)

Features :

  • Operates on 12VDC / Optional 230VAC
  • Has potential free output and LED indication.
  • Displays distance to leak location in metres.
  • Indicates cable break condition.
  • Maximum length of linear leak detection cable is 99 metres.
  • Can detect leak anywhere along the entire cable length.
  • Built in audio sounder and common hooter output.
  • Easy to install and operate.
  • Self-restoring.
  • Soft membrane switches.
  • Communicates with the Master using RS485.

Technical Specifications :

Input voltage 12V DC, 200 mA ( +/- 2%) / Optional 230VAC
Communication RS485 Modbus protocol.
Communication wire Use 1.5 Sq.mm Shielded /Twisted braid copper cable
Display LED Display
Response time Minimum 5sec from leak sense to generate alarm in module
Indication Audible buzzer during alarm condition, LED indication
Sensor cable AWLDC-01 sensor cable
Maximum length 100m per module
Relay Output Common relay output
Audible Sounder for Alarm
Working Temperature 10 to 50 Deg C
Construction ABS Plastic
Size ( HXWXD) 108mm X 102mm X 54mm
Certifications CE

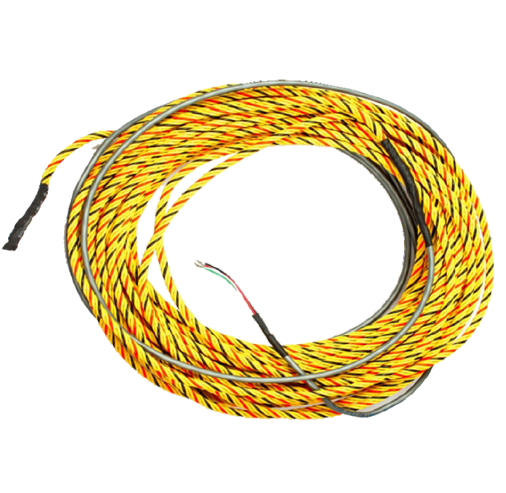

Addressable Water Leak Detection Cable
Industrial Emergency Lights (EXLITE – Industrial Series)

Features :

  • Water Leak Detection cable consists off our conductors, two water sensitive and two data.
  • The cable is restorable and corrosion resistant and does not require replacement after being wet.
  • Cable can be installed in the path of a potential water leak.
  • Each end of the cable is factory constructed end of line circuit to make installation of leak detection systems quick and easy

Technical Specifications :

CARRIER MATERIAL Steel 4*0.5 +/- 0.008mm
OUTSIDE MATERIAL FLUOROPOLYMER
CONDUCTOR MATERIAL COPPER 7*0.2
OUTSIDE MATERIAL & SPEC PVC & RESISTANCE 12.5 -13.5 R / 1M
CONDUCTOR MATERIAL COPPER 1*0.37
OUTSIDE MATERIAL & SPEC PVC
OVERALL DIAMETER 6MM
COLOUR BLACK *2 , RED,YELLOW/BLUE
CABLE WEIGHT 4KG /100M
Note:
Cable lengths : It comes in multiple of 5 mtrs,10mtrs, 15mtrs, 20mtrs
